UEFI开发学习21 – 运行EFI APP

好久没更新了,趁着端午假期休息,安排几篇文章 ~

我们知道,UEFI的启动流程中,BDS阶段最终会把操作系统启动起来,UEFI 所做的只是运行一个操作系统的bootloader,而bootloader实际上就是一个EFI APP,那它是如何启动的呢?这就是本篇要探究的话题:如何在程序中运行一个EFI APP

Image Services

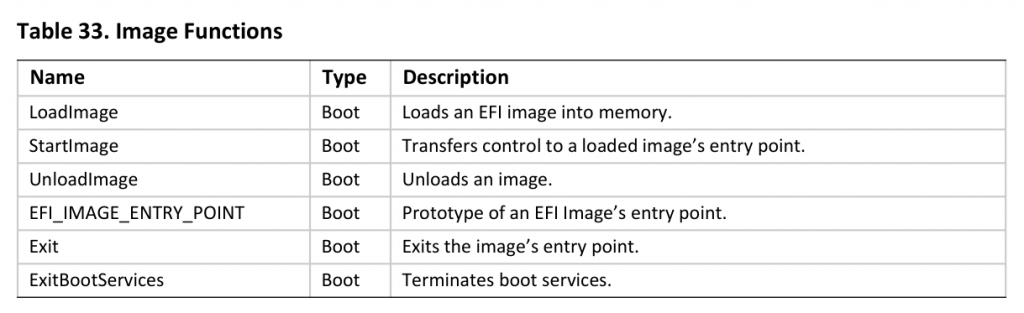

不管是EFI Driver,还是EFI APP,它们都统称为EFI Image。UEFI 中定义了 EFI Image 的操作方法及其标准,即Image Services,如下:

这里要特别提一下 EFI_IMAGE_ENTRY_POINT ,它定义了一个标准 EFI Image 的入口函数:

typedef
EFI_STATUS
(EFIAPI *EFI_IMAGE_ENTRY_POINT) (
IN EFI_HANDLE ImageHandle,
IN EFI_SYSTEM_TABLE *SystemTable
);

当一个EFI Image被执行时,便是从入口函数开始执行的,这也是我们写inf模块的时候,入口函数必须这么写的原因。

EFI 启动示例

启动一个EFI Image总的来说分两步,首先是使用LoadImage()加载到内存,然后再使用StartImage()运行。EDK2中有相关的代码,详见IntelFrameworkModulePkg\Library\GenericBdsLib\BdsBoot.c中的BdsLibBootViaBootOption()函数,我参照此写了个示例,如下:

StartEfi.c

#include <Uefi.h>
#include <Library/UefiLib.h>
#include <Protocol/DevicePath.h>
#include <Library/UefiBootServicesTableLib.h>
#include <Library/UefiRuntimeServicesTableLib.h>
#include <IndustryStandard/PeImage.h>
#include <Protocol/BlockIo.h>
#include <Protocol/LoadedImage.h>
#include <Protocol/SimpleFileSystem.h>
#include <Protocol/LoadFile.h>
#include <Library/MemoryAllocationLib.h>
#include <Library/DebugLib.h>
#include <Library/DevicePathLib.h>
#include <Library/BaseMemoryLib.h>
#include <Protocol/DevicePathToText.h>
#include <Guid/FileInfo.h>

/**
  Get the headers (dos, image, optional header) from an image

  @param  Device                SimpleFileSystem device handle
  @param  FileName              File name for the image
  @param  DosHeader             Pointer to dos header
  @param  Hdr                   The buffer in which to return the PE32, PE32+, or TE header.

  @retval EFI_SUCCESS           Successfully get the machine type.
  @retval EFI_NOT_FOUND         The file is not found.
  @retval EFI_LOAD_ERROR        File is not a valid image file.

**/
EFI_STATUS
EFIAPI
BdsLibGetImageHeader (
  IN  EFI_HANDLE                  Device,
  IN  CHAR16                      *FileName,
  OUT EFI_IMAGE_DOS_HEADER        *DosHeader,
  OUT EFI_IMAGE_OPTIONAL_HEADER_PTR_UNION   Hdr
  )
{
  EFI_STATUS                       Status;
  EFI_SIMPLE_FILE_SYSTEM_PROTOCOL  *Volume;
  EFI_FILE_HANDLE                  Root;
  EFI_FILE_HANDLE                  ThisFile;
  UINTN                            BufferSize;
  UINT64                           FileSize;
  EFI_FILE_INFO                    *Info;

  Root     = NULL;
  ThisFile = NULL;
  //
  // Handle the file system interface to the device
  //
  Status = gBS->HandleProtocol (
                  Device,
                  &gEfiSimpleFileSystemProtocolGuid,
                  (VOID *) &Volume
                  );
  if (EFI_ERROR (Status)) {
    goto Done;
  }

  Status = Volume->OpenVolume (
                     Volume,
                     &Root
                     );
  if (EFI_ERROR (Status)) {
    Root = NULL;
    goto Done;
  }
  ASSERT (Root != NULL);
  Status = Root->Open (Root, &ThisFile, FileName, EFI_FILE_MODE_READ, 0);
  if (EFI_ERROR (Status)) {
    goto Done;
  }
  ASSERT (ThisFile != NULL);

  //
  // Get file size
  //
  BufferSize  = SIZE_OF_EFI_FILE_INFO + 200;
  do {
    Info   = NULL;
    Status = gBS->AllocatePool (EfiBootServicesData, BufferSize, (VOID **) &Info);
    if (EFI_ERROR (Status)) {
      goto Done;
    }
    Status = ThisFile->GetInfo (
                         ThisFile,
                         &gEfiFileInfoGuid,
                         &BufferSize,
                         Info
                         );
    if (!EFI_ERROR (Status)) {
      break;
    }
    if (Status != EFI_BUFFER_TOO_SMALL) {
      FreePool (Info);
      goto Done;
    }
    FreePool (Info);
  } while (TRUE);

  FileSize = Info->FileSize;
  FreePool (Info);

  //
  // Read dos header
  //
  BufferSize = sizeof (EFI_IMAGE_DOS_HEADER);
  Status = ThisFile->Read (ThisFile, &BufferSize, DosHeader);
  if (EFI_ERROR (Status) ||
      BufferSize < sizeof (EFI_IMAGE_DOS_HEADER) ||
      FileSize <= DosHeader->e_lfanew ||
      DosHeader->e_magic != EFI_IMAGE_DOS_SIGNATURE) {
    Status = EFI_LOAD_ERROR;
    goto Done;
  }

  //
  // Move to PE signature
  //
  Status = ThisFile->SetPosition (ThisFile, DosHeader->e_lfanew);
  if (EFI_ERROR (Status)) {
    Status = EFI_LOAD_ERROR;
    goto Done;
  }

  //
  // Read and check PE signature
  //
  BufferSize = sizeof (EFI_IMAGE_OPTIONAL_HEADER_UNION);
  Status = ThisFile->Read (ThisFile, &BufferSize, Hdr.Pe32);
  if (EFI_ERROR (Status) ||
      BufferSize < sizeof (EFI_IMAGE_OPTIONAL_HEADER_UNION) ||
      Hdr.Pe32->Signature != EFI_IMAGE_NT_SIGNATURE) {
    Status = EFI_LOAD_ERROR;
    goto Done;
  }

  //
  // Check PE32 or PE32+ magic
  //
  if (Hdr.Pe32->OptionalHeader.Magic != EFI_IMAGE_NT_OPTIONAL_HDR32_MAGIC &&
      Hdr.Pe32->OptionalHeader.Magic != EFI_IMAGE_NT_OPTIONAL_HDR64_MAGIC) {
    Status = EFI_LOAD_ERROR;
    goto Done;
  }

 Done:
  if (ThisFile != NULL) {
    ThisFile->Close (ThisFile);
  }
  if (Root != NULL) {
    Root->Close (Root);
  }
  return Status;
}


/**
  Return the bootable media handle.
  First, check the device is connected
  Second, check whether the device path point to a device which support SimpleFileSystemProtocol,
  Third, detect the the default boot file in the Media, and return the removable Media handle.

  @param  DevicePath  Device Path to a  bootable device

  @return  The bootable media handle. If the media on the DevicePath is not bootable, NULL will return.

**/
EFI_HANDLE
EFIAPI
BdsLibGetBootableHandle (
  IN  EFI_DEVICE_PATH_PROTOCOL      *DevicePath,
  IN  CHAR16                        *ImageName
  )
{
  EFI_STATUS                      Status;
  EFI_TPL                         OldTpl;
  EFI_DEVICE_PATH_PROTOCOL        *UpdatedDevicePath;
  EFI_DEVICE_PATH_PROTOCOL        *DupDevicePath;
  EFI_HANDLE                      Handle;
  EFI_BLOCK_IO_PROTOCOL           *BlockIo;
  VOID                            *Buffer;
  EFI_DEVICE_PATH_PROTOCOL        *TempDevicePath;
  UINTN                           Size;
  UINTN                           TempSize;
  EFI_HANDLE                      ReturnHandle;
  EFI_HANDLE                      *SimpleFileSystemHandles;

  UINTN                           NumberSimpleFileSystemHandles;
  UINTN                           Index;
  EFI_IMAGE_DOS_HEADER            DosHeader;
  EFI_IMAGE_OPTIONAL_HEADER_UNION       HdrData;
  EFI_IMAGE_OPTIONAL_HEADER_PTR_UNION   Hdr;

  UpdatedDevicePath = DevicePath;

  //
  // Enter to critical section to protect the acquired BlockIo instance
  // from getting released due to the USB mass storage hotplug event
  //
  OldTpl = gBS->RaiseTPL (TPL_CALLBACK);

  //
  // Check whether the device is connected
  //
  Status = gBS->LocateDevicePath (&gEfiBlockIoProtocolGuid, &UpdatedDevicePath, &Handle);
  if (EFI_ERROR (Status)) {
    //
    // Skip the case that the boot option point to a simple file protocol which does not consume block Io protocol,
    //
    Status = gBS->LocateDevicePath (&gEfiSimpleFileSystemProtocolGuid, &UpdatedDevicePath, &Handle);
    if (EFI_ERROR (Status)) {
      //
      // Fail to find the proper BlockIo and simple file protocol, maybe because device not present,  we need to connect it firstly
      //
      UpdatedDevicePath = DevicePath;
      Status            = gBS->LocateDevicePath (&gEfiDevicePathProtocolGuid, &UpdatedDevicePath, &Handle);
      gBS->ConnectController (Handle, NULL, NULL, TRUE);
    }
  } else {
    //
    // For removable device boot option, its contained device path only point to the removable device handle,
    // should make sure all its children handles (its child partion or media handles) are created and connected.
    //
    gBS->ConnectController (Handle, NULL, NULL, TRUE);
    //
    // Get BlockIo protocol and check removable attribute
    //
    Status = gBS->HandleProtocol (Handle, &gEfiBlockIoProtocolGuid, (VOID **)&BlockIo);
    ASSERT_EFI_ERROR (Status);

    //
    // Issue a dummy read to the device to check for media change.
    // When the removable media is changed, any Block IO read/write will
    // cause the BlockIo protocol be reinstalled and EFI_MEDIA_CHANGED is
    // returned. After the Block IO protocol is reinstalled, subsequent
    // Block IO read/write will success.
    //
    Buffer = AllocatePool (BlockIo->Media->BlockSize);
    if (Buffer != NULL) {
      BlockIo->ReadBlocks (
               BlockIo,
               BlockIo->Media->MediaId,
               0,
               BlockIo->Media->BlockSize,
               Buffer
               );
      FreePool(Buffer);
    }
  }

  //
  // Detect the the default boot file from removable Media
  //

  //
  // If fail to get bootable handle specified by a USB boot option, the BDS should try to find other bootable device in the same USB bus
  // Try to locate the USB node device path first, if fail then use its previous PCI node to search
  //
  DupDevicePath = DuplicateDevicePath (DevicePath);
  ASSERT (DupDevicePath != NULL);

  UpdatedDevicePath = DupDevicePath;
  Status = gBS->LocateDevicePath (&gEfiDevicePathProtocolGuid, &UpdatedDevicePath, &Handle);
  //
  // if the resulting device path point to a usb node, and the usb node is a dummy node, should only let device path only point to the previous Pci node
  // Acpi()/Pci()/Usb() --> Acpi()/Pci()
  //
  if ((DevicePathType (UpdatedDevicePath) == MESSAGING_DEVICE_PATH) &&
      (DevicePathSubType (UpdatedDevicePath) == MSG_USB_DP)) {
    //
    // Remove the usb node, let the device path only point to PCI node
    //
    SetDevicePathEndNode (UpdatedDevicePath);
    UpdatedDevicePath = DupDevicePath;
  } else {
    UpdatedDevicePath = DevicePath;
  }

  //
  // Get the device path size of boot option
  //
  Size = GetDevicePathSize(UpdatedDevicePath) - sizeof (EFI_DEVICE_PATH_PROTOCOL); // minus the end node
  ReturnHandle = NULL;
  gBS->LocateHandleBuffer (
      ByProtocol,
      &gEfiSimpleFileSystemProtocolGuid,
      NULL,
      &NumberSimpleFileSystemHandles,
      &SimpleFileSystemHandles
      );

  for (Index = 0; Index < NumberSimpleFileSystemHandles; Index++) {
    //
    // Get the device path size of SimpleFileSystem handle
    //
    TempDevicePath = DevicePathFromHandle (SimpleFileSystemHandles[Index]);
    TempSize = GetDevicePathSize (TempDevicePath)- sizeof (EFI_DEVICE_PATH_PROTOCOL); // minus the end node
    //
    // Check whether the device path of boot option is part of the  SimpleFileSystem handle's device path
    //
    if (Size <= TempSize && CompareMem (TempDevicePath, UpdatedDevicePath, Size)==0) {
      //
      // Load the default boot file \EFI\BOOT\boot{machinename}.EFI from removable Media
      //  machinename is ia32, ia64, x64, ...
      //
      Hdr.Union = &HdrData;
      Status = BdsLibGetImageHeader (
                 SimpleFileSystemHandles[Index],
                 ImageName,
                 &DosHeader,
                 Hdr
                 );
      if (!EFI_ERROR (Status) &&
        EFI_IMAGE_MACHINE_TYPE_SUPPORTED (Hdr.Pe32->FileHeader.Machine) &&
        Hdr.Pe32->OptionalHeader.Subsystem == EFI_IMAGE_SUBSYSTEM_EFI_APPLICATION) {
        ReturnHandle = SimpleFileSystemHandles[Index];
        break;
      }
    }
  }

  FreePool(DupDevicePath);

  if (SimpleFileSystemHandles != NULL) {
    FreePool(SimpleFileSystemHandles);
  }

  gBS->RestoreTPL (OldTpl);

  return ReturnHandle;
}

EFI_STATUS
EFIAPI
UefiMain (
  IN EFI_HANDLE        MyImageHandle,
  IN EFI_SYSTEM_TABLE  *SystemTable
  )
{
  EFI_STATUS                         Status;
  UINTN                              Index;
  UINTN                              NoHandles;
  EFI_HANDLE                       * Buffer;
  EFI_DEVICE_PATH_PROTOCOL         * DevicePath;
  EFI_HANDLE                         ImageHandle;
  CHAR16                           * EfiImageName = L"\\HelloWorld.efi";

  Status = gBS->LocateHandleBuffer(ByProtocol, &gEfiSimpleFileSystemProtocolGuid, NULL, &NoHandles, &Buffer);
  if (EFI_ERROR(Status)) {
    Print(L"Unsupported\n\r");
    return 0;
  }

  for (Index = 0; Index < NoHandles; Index ++){

    DevicePath  = DevicePathFromHandle (Buffer[Index]);
    ImageHandle = BdsLibGetBootableHandle(DevicePath, EfiImageName);
    DevicePath  = FileDevicePath (ImageHandle, EfiImageName);

    if (ImageHandle == NULL) {
      Print(L"Open Image fail\n\r");
      continue;
    }

    Status = gBS->LoadImage (
                    FALSE,
                    gImageHandle,
                    DevicePath,
                    NULL,
                    0,
                    &ImageHandle
                    );
    if (EFI_ERROR (Status)) {
      Print(L"Load Image error %r %x\n\r", Status, gImageHandle);
      continue;
    }

    Status = gBS->StartImage (ImageHandle, NULL, NULL);
    if (!EFI_ERROR (Status)) {
      Print(L"Start Image successfully\n\r");
      break;
    }
    else {
      Print(L"Start Image Failed!\n\r");
    }
  }

  return EFI_SUCCESS;
}

StartEfi.inf

## @file
#  A simple, basic, EDK II native, "hello" application.
#
#   Copyright (c) 2010, Intel Corporation. All rights reserved.<BR>
#   This program and the accompanying materials
#   are licensed and made available under the terms and conditions of the BSD License
#   which accompanies this distribution. The full text of the license may be found at
#   http://opensource.org/licenses/bsd-license.
#
#   THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS,
#   WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.
#
##

[Defines]
  INF_VERSION                    = 0x00010006
  BASE_NAME                      = StartEfi
  FILE_GUID                      = a912f198-7f0e-4803-b908-b757b806ec81
  MODULE_TYPE                    = UEFI_APPLICATION
  VERSION_STRING                 = 0.1
  ENTRY_POINT                    = UefiMain

#
#  VALID_ARCHITECTURES           = IA32 X64 IPF
#

[Sources]
 StartEfi.c

[Packages]
  MdePkg/MdePkg.dec
  MdeModulePkg/MdeModulePkg.dec

[LibraryClasses]
  UefiLib
  UefiHiiServicesLib
  UefiApplicationEntryPoint

[Guids]
  gEfiFileInfoGuid

[Protocols]
  gEfiBlockIoProtocolGuid
  gEfiSimpleFileSystemProtocolGuid

该实例是运行一个HelloWorld.efi,结果如下:

注意被运行的EFI一定要用标准的EFI Image入口,如果是AppPkg中使用的main函数作为入口,是无法被启动的!

运行BootLoader

操作系统安装的时候,会创建一个FAT32的分区,然后在EFI\BOOT\目录放入BOOTXXX.efi文件,XXX表示平台架构,x86平台64位系统为BOOTX64.EFI,Arm架构64位则为BOOTAA64.EFI...目前大多数使用的都是x86架构64位系统。

知道此原理后,我们可以将前面例子中 L"\\HelloWorld.efi" 改为 L"\\EFI\\BOOT\\BOOTX64.EFI",即可启动系统。测试可以使用虚拟机或者直接用实体机器,效果如下:

附件

已上传至Gitee:https://gitee.com/ay123net/uefistudy

版权声明:
作者:bin
链接:https://ay123.net/mystudy/uefi/1412/
来源:爱影博客
文章版权归作者所有,未经允许请勿转载。

THE END
分享
二维码
海报
UEFI开发学习21 – 运行EFI APP
好久没更新了,趁着端午假期休息,安排几篇文章 ~ 我们知道,UEFI的启动流程中,BDS阶段最终会把操作系统启动起来,UEFI 所做的只是运行一个操作系统的bootloa……
<<上一篇
下一篇>>
文章目录
关闭
目 录
